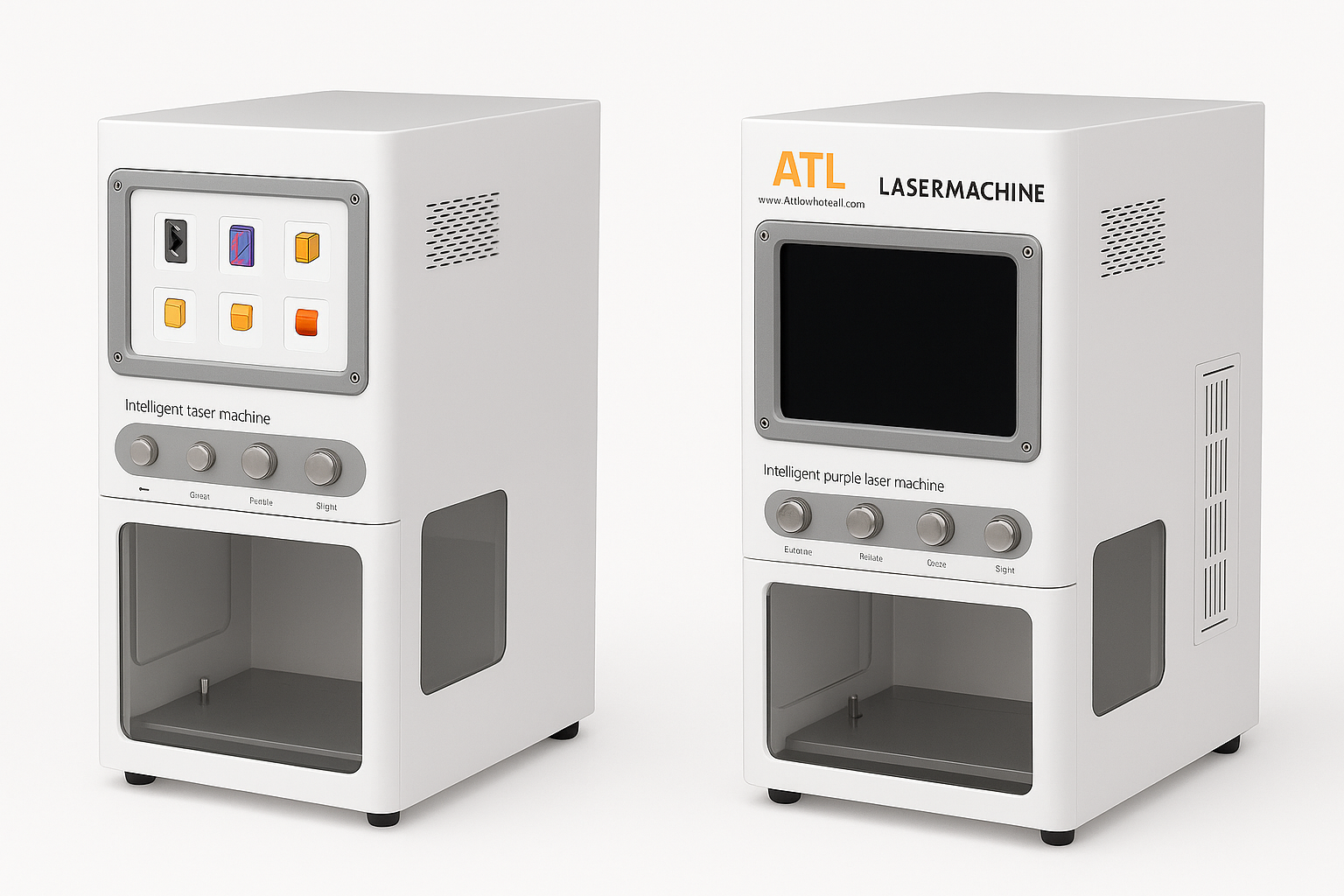

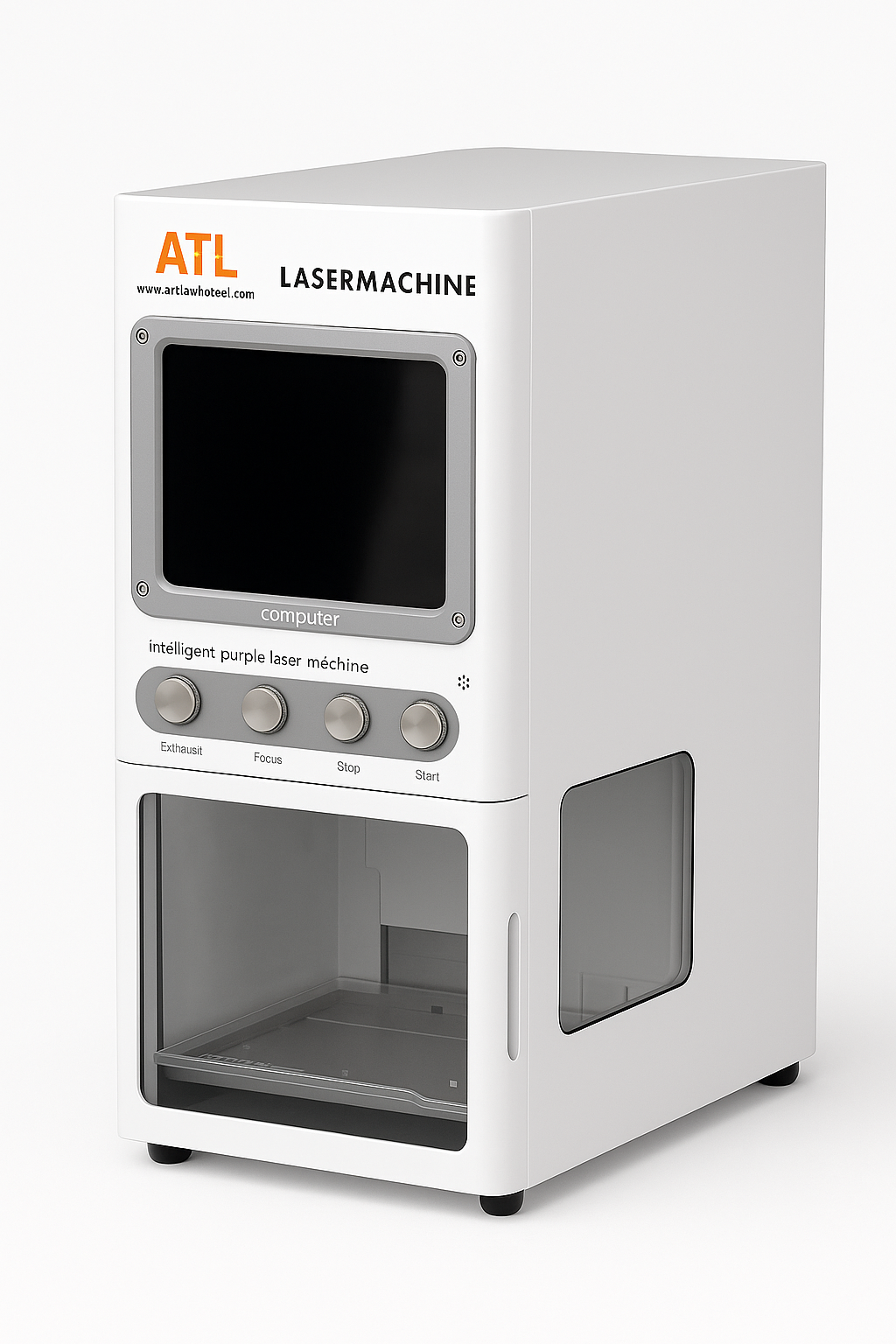

ATL LASER MACHINE INBUILT LCD FRONT AND BACK REMOVING SEPARATING LASER MACHINE (AW-101)

ATL LASER MACHINE INBUILT LCD FRONT AND BACK REMOVING SEPARATING LASER MACHINE (AW-101)

• High-Speed Phone Repair: Drastically reduce repair time by removing a phone's back glass in 4-8 minutes. It allows for the safe separation of broken LCD screens (including curved screens) in just 2 minutes.
• Compact & Lightweight: With a small footprint (240 * 400 * 500mm) and a low net weight of only 25.6 kg, this machine is easy to place and significantly reduces international shipping costs.
• Rich Drawing Library: The built-in system comes pre-loaded with drawings for mainstream mobile phone models, ensuring precise and easy operation.
• Autofocus System: Features high-speed automatic precision focus for quick setup and accurate results.
• Wide Material Application: Capable of marking and engraving on materials such as metal, plastic, glass, silicone, ceramics, and more.
• Bendable Platform: The adjustable platform design allows for the effective separation of curved phone screens.
• Built-in Fume Extractor: An integrated activated carbon filtration system absorbs smoke and dust, ensuring a safer and cleaner work environment.

Products Specification.

• Product Model: AW-101
• Brand: ATL
• Operating Voltage: 110-220V
• Laser Power: 5W
• Laser Wavelength: 355nm
• Marking Area: 170mm x 170mm
• Marking Speed: ≤10000mm/s
• Marking Line Width: 0.05-0.01mm
• Marking Depth: 0.015-0.5mm
• Marking Accuracy: ≤0.001mm
• Repeatability: ≤0.001mm
• Screen Size: 20cm x 15cm
• Product Size: 240mm x 400mm x 500mm
• Net Weight: 25.6 kg
• Gross Weight: 35 kg
• Packing Size: 350mm x 510mm x 670mm
